Whether you’re designing a tree house, engineering an espresso machine, or landscaping a French garden, the productivity matters. Seamless connection of objects reduces hassles of countless design changes.
Discover a new way of 2D drafting and innovate your everyday work with midas CAD.
Key Features of
midas CAD

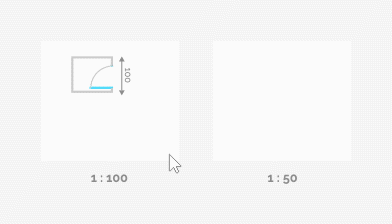

Auto-Scale
When copy the original drawings to other scale sheet, it will automatically change the scale to relevant drawing scale and keep dimension and text size separately.

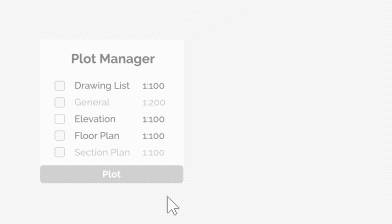

Multi Plotting & Export
An innovative Multi plotting function automatically plots all or selected sheets at one click into paper, PDF, DWG formats.

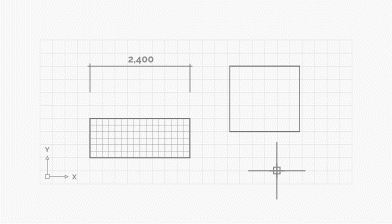

Match Draw
While pressing Shift key together with drawing, you can directly draw certain types of layer, color, shape, style without match properties or copy function.

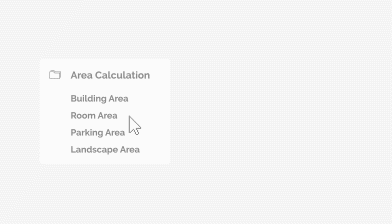

Info-Table
Shapes as well as drawing information can be customized by your own template. Automate tables of area calculation, parking ratio, insulation, energy, etc.

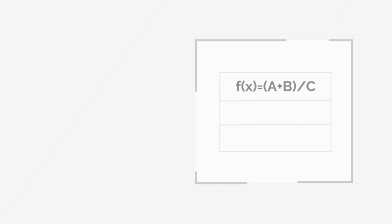

MS Excel Sync
Now MS Excel data can be Inserted or embedded into CAD drawing file. You can create Excel formula table inside drawing file itself connected with drawing data.
User Line
Frequent used line types include hatch, layer, color can be saved into your workbench. You can just drag a certain pattern line from the list and draw directly.

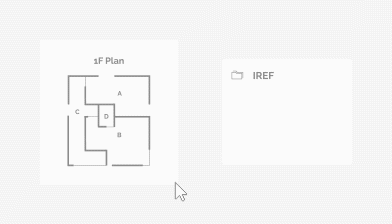

Quick Reference
QREF allows you to manage REF drawings more efficiently and quickly. You can simply define the REF drawing like object and save into your workbench.
“CADish” Interface
Classic CAD menu and same settings, command, drawing features help you to carry the work without any learning curve.
